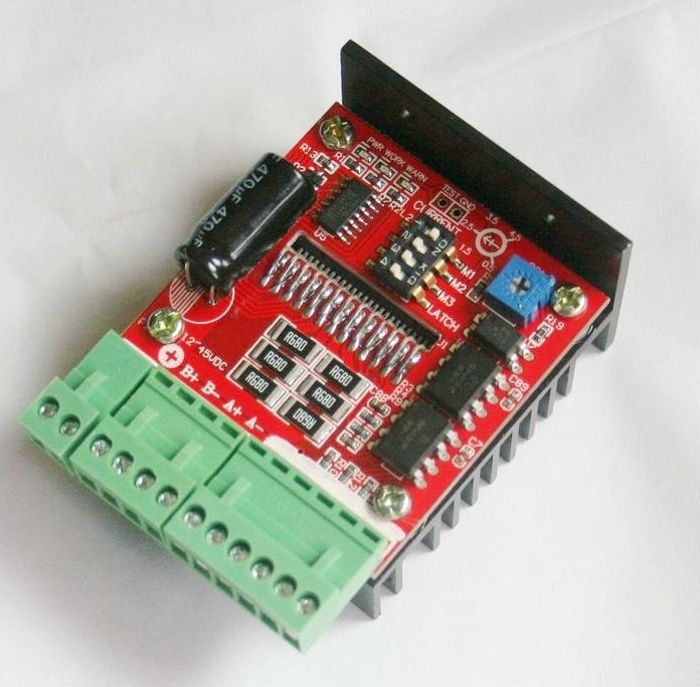

TB6600 4.5A CNC Engraving Machine Stepper Motor Driver Board New Version
100% Brand New And High Quality
one Axis 4.5A Stepper Motor Driver Borad Controller TB6600 Chip, support most parallet softwares KCAM4, MACH3 etc.
DC : 12 - 36V
Motor : 42,57,86

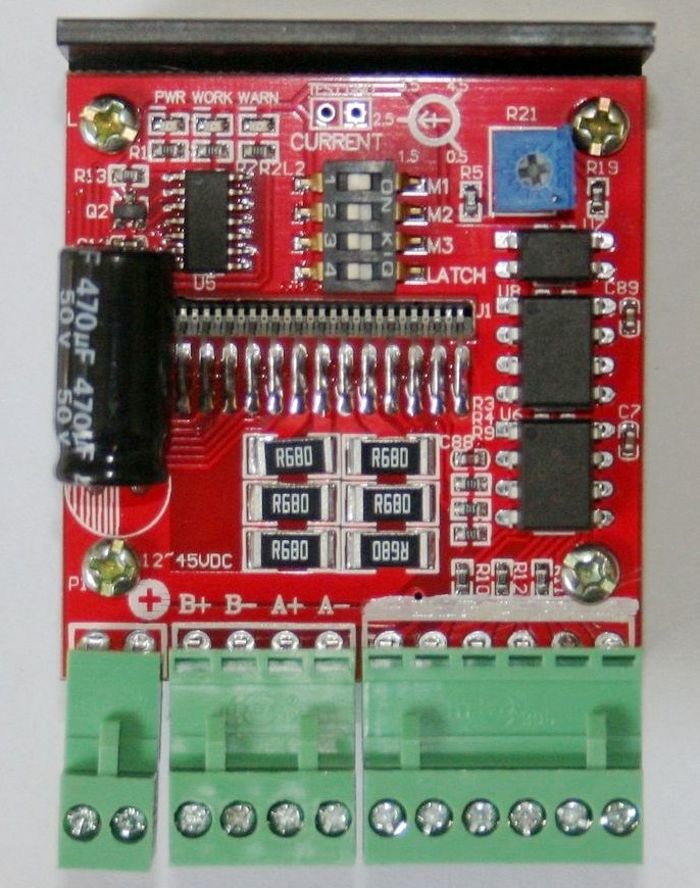

STEP DIRVER PORT is stepping motor interface, from left to right definition A is B +, B -, A +, A –
CTR PORT is input control interface,, from left to right in turn definition is DIR -, DIR +, STEP -, STEP +, EN, EN +
With automatic half flow function
Input pulse peak frequency up to 15 KHZ
Support 5 kinds of segmentation choice: 1, 1/2, 1/4, 1/8, 1/16
Has the current 0.7 A 4.5 A stepless adjustable function
M1
M2
M3
MOD
OFF
OFF
OFF
Free, Motor don't lock
OFF
OFF
ON
1 subdivision
OFF
ON
OFF
A mode,1/2 subdivision
OFF
ON
ON
B mode,1/2 subdivision
ON
OFF
OFF
1/4 subdivision
ON
OFF
ON
1/8 subdivision
ON
ON
OFF
1/16 subdivision
ON
ON
ON
Free, Motor don't lock
Latch:
ON: automatic recovery mode, OFF: manual recovery mode.
Package includes:
1 x Single-axis 4.5A CNC Engraving Machine Stepper Motor Driver Board
