New USR-WIFI232-T Serial UART to WIFI Module Support WPS Smart-LINK 802.11 b/g/n
100% Brand New And High Quality
802.11b/g/n wireless standards
MCU platform independent development, high cost
Ultra-low power consumption, excellent power-saving mechanism, suitable for battery-powered applications
Support UART / PWM / GPIO data communication interface
Support STA / AP / STA + AP coexistence mode
Smart Link supports intelligent networking capabilities (provided APP)
Wireless and remote firmware upgrade support to provide wireless configuration tool batch
Supports WPS configuration networking
Support multiple (5-way) TCP Client connection
Support DIP switch control module power
Optional external antenna connector or lead interfaces IPEX
3.3V single power supply

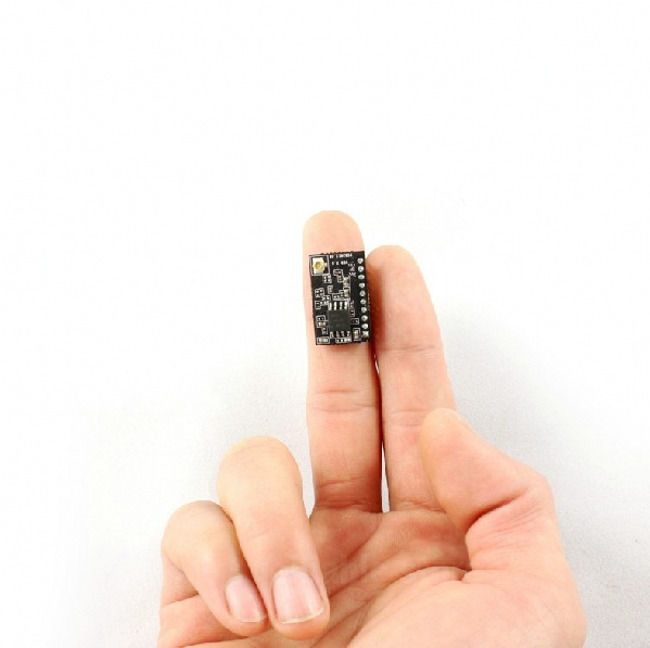

Ultra-small size: 22mm x 13.5mm x 6mm, 1x10 2mm connector
Products by FCC / CE certification standards
Product Manual Description
Quick Start Guide
Package includes:
1 x USR-WIFI232-T Serial to WIFI Module Support WPS Smart-LINK
We can also wholesale if you need a large quantity of item please contact us
