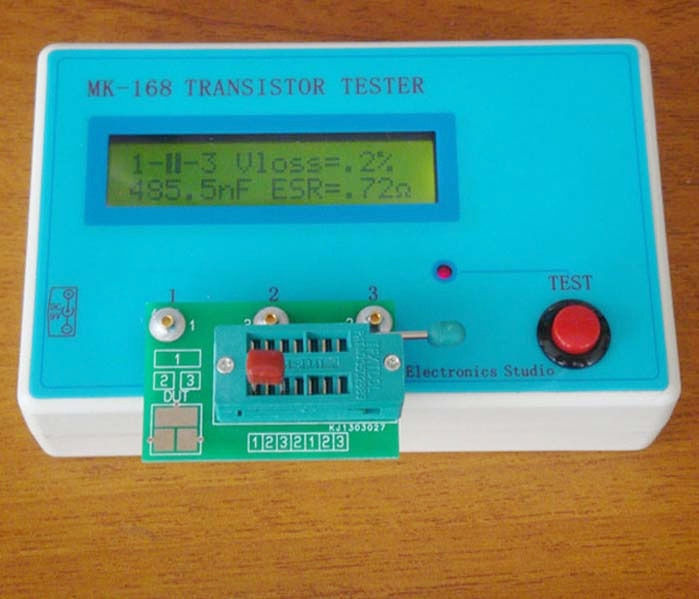

NEW Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPNN
Overview：
1 using the latest M328 version 2014 V1.10 software, features more than the M8 version.
2 micro-controller uses 8MHz external crystal, measurement accuracy is better.
3 affect the accuracy of one-thousandth of the relevant resistance metal film resistors using
the remaining one percent is also used metal film resistors.
4.LCD backlit LCD screen with low power consumption, compared with the whole power consumption
is almost negligible, so the light is always there, easy reading in the dark.
5 built-9V laminated battery. With external DC power jack, prolonged use of more economical.
6 All components are made of high quality genuine.
7 standard configuration for the host + test + Locking hook line paste the test seat.
8 Dimensions:. 125X80X32 (mm)
9 Weight (with attachments): less than 200 grams.
Technical performance:
1 one-button operation, automatic shutdown.
2 shutdown current is only about 20nA.
3 using 8MH crystals.
4 can automatically detect NPN, PNP bipolar transistors,
N-channel and P-channel MOS FET, JFET, diodes, dual diode,
thyristor small power unidirectional and bidirectional thyristor.
5 Automatic identification pin arrangement of components.
6 current amplification factor and base measuring bipolar
transistor -. Emitter threshold voltage.
7 can be coupled through the base -. Emitter threshold voltage
and high-current amplification factor identification Darlington
transistors.
8 can detect bipolar transistors and MOS pipe protection diodes.
9 measuring MOS FET gate threshold voltage and gate capacitance.
10 can be measured simultaneously with two resistors and resistor
symbol is displayed. Display with four decimal values on the right
side. Resistance symbol is displayed on both sides of the pin number.
So you can measure the potentiometer. If the potentiometer wiper
not be transferred to a extreme position, it can distinguish between
the middle and both ends of the pin.
11 resistance measurement resolution is 0.1 ohm, can measure
to 50M ohms.
12 can be measured capacitance. Capacitor symbol is displayed
on the right display values can be displayed with four decimal
value. Can measure the capacitance of 30pF-100mF resolution 1pF.
13.2uF more capacitors can measure the value of the equivalent
series resistance ESR. The two values can be displayed with
a decimal, resolution of 0.01 ohms.
14. may be displayed in the correct order of two diodes and
a diode symbol, and gives the diode forward voltage.
15.LED is detected as a diode, its forward voltage higher.
LED combo is identified as two diodes.
16. Reverse breakdown voltage is less than 4.5V Zener diode
can be identified.
17 can measure a single diode reverse capacitance.
If the connection base and collector of the bipolar transistor or
the emitter of a pin, the reverse can also be measured or
collector junction capacitance of the emitter junction.
18. Will be able to get connected just one way
to measure the rectifier bridge.
19 Although the capacitance measurement limit is 30Pf,
but you can be measured by the measured capacitance with
a known volume of at least 30pF capacitor in parallel, and
then obtain the desired result is subtracted from the measurement
results will parallel capacitor.
20 can be less than 2100 ohm resistor to measure inductance,
or will be able to measure 2100 ohm resistor inductance.
Measurement range 0.01mH-20H, but the accuracy is not very good.
Measurement results show that only a single component. 21.
Measurement time is about 2S, but longer time measuring
capacitance and inductance.
Package includes:
1 x New Transistor Tester Capacitor ESR Inductance Resistor Meter
1 x SMD Test adapter
3 x Test Clips
We can also wholesale if you need a large quantity of item please contact us
