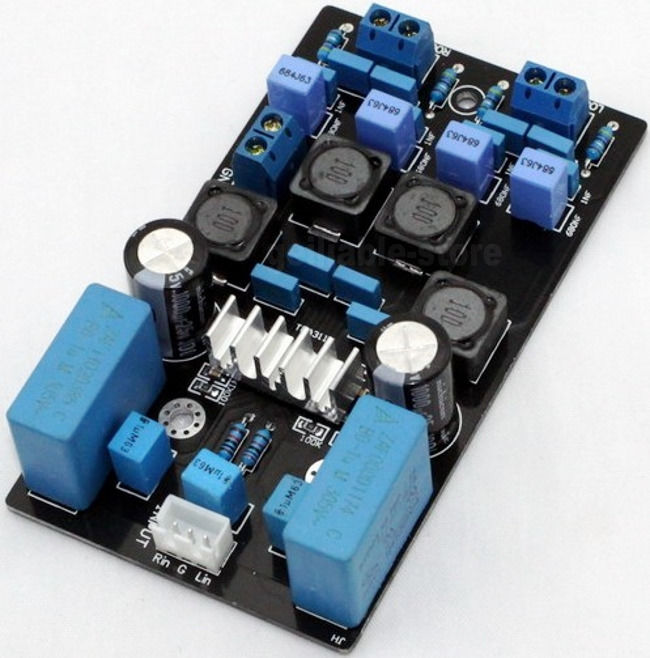

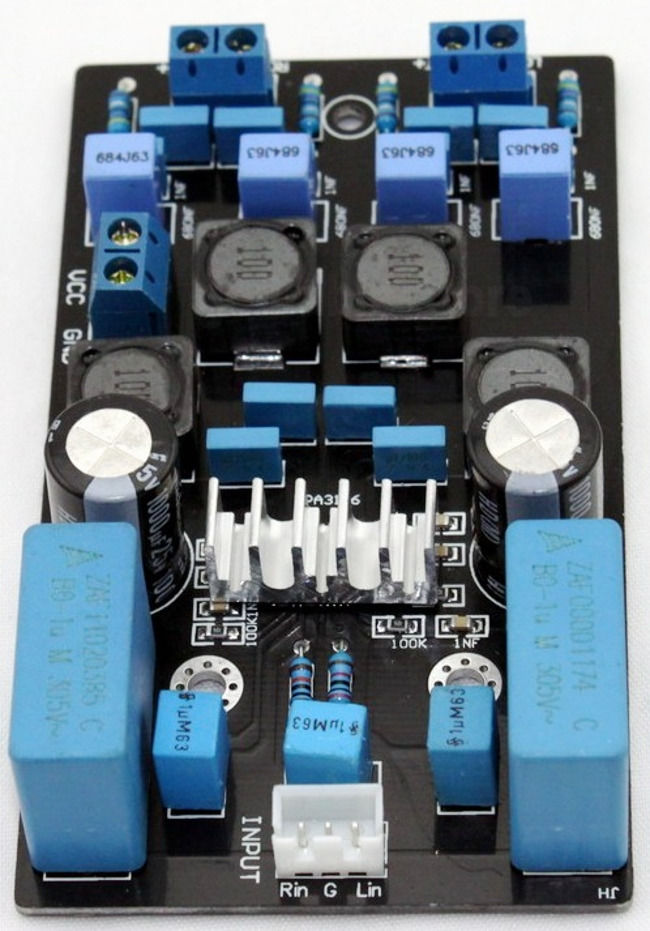

New TPA3116 Inductor Famous Circuit Design Class D Digital Power Amplifier Board
100% Brand New And High Quality
All components of this product are original authentic, unpretentious, pure quality; using high-quality original parts, not just the safety and quality guaranteed, long life, more importantly, so that the actual performance can meet the design goals of a strong guarantee. Our pursuit of first-class quality is the consistent aim.
Feature
This is a assembled board, which use original TPA3116;
the Main filter capacitor use Nikon Dedicated electrolytic capacitor 2×1000UF, using full-wave bridge rectifier circuit to ensure strong support for a steady stream of power.
Resistance selection Rings metal resistance, the main circuit employs a precision of ± 1% metal film resistors rings, ensure the machine a good signal to noise ratio.
PCB using double-sided sheet 1.6mm thick, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. First-class quality of the PCB.
Work type: Class D
Quiescent current:50mA
Efficiency of operations:90%
Rated output power:50W+50W
Frequency response:20Hz to 20KHz
Working Voltage:DC18V to DC24V
Max output current:2A
PCB Size:103*58mm
Package includes:
1 x TPA3116 Board 127 Inductor
We can also wholesale if you need a large quantity of item please contact us
