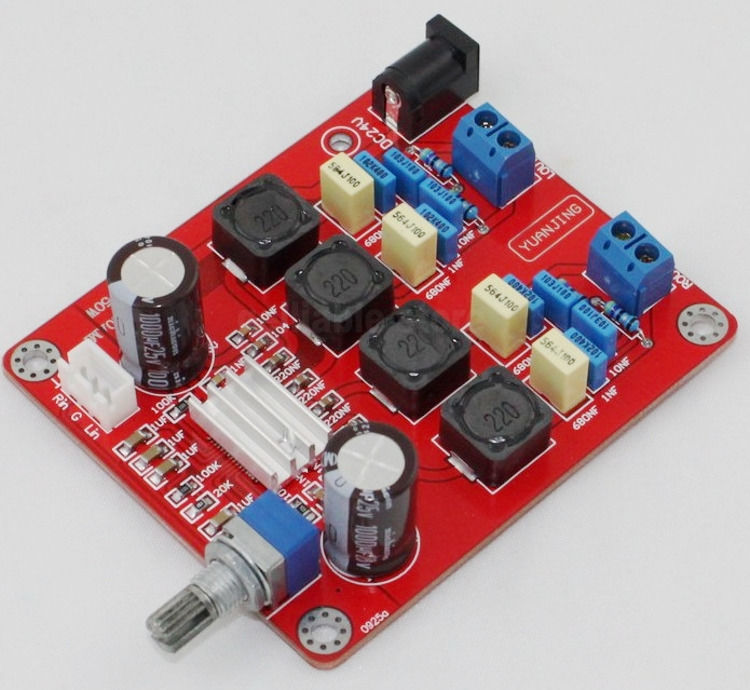

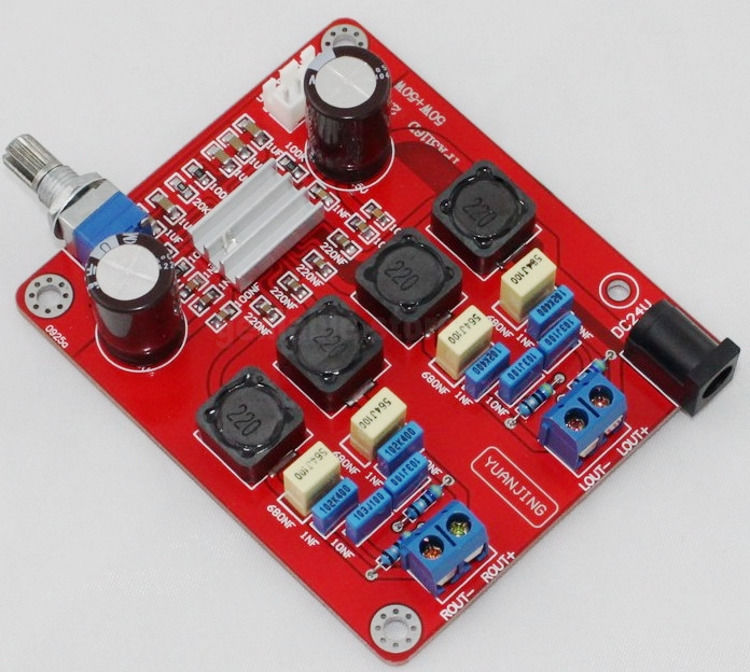

New TPA3116 Class D Power Amplifier Board 50W + 50W Filter Capacitor 2×10000UF
All components of this product are original authentic , unpretentious , pure quality ; using high-quality original parts , not just the safety and quality guaranteed , long life , more importantly, so that the actual performance can meet the design goals of a strong guarantee . Our pursuit of first-class quality is the consistent aim .
Electrolytic capacitor signal main circuit adopts famous brand in Taiwan , the main filter capacitor usingNikonSpecial electrolytic capacitorsCapacity2 × 10000UF, A full-wave bridge rectifier circuit to ensure strong support for a steady stream of power .
Resistance selection Rings metal resistance , the main circuit employs a precision± 1%The metal film resistors rings , ensure the machine a good signal to noise ratio .
PCBAdoption1.6mmThick double-sided sheet,2.0Oz copper thickness , HASL whole process to ensure that the size of the current through the good performance. TopPCBQuality .
Potentiometer fully enclosed dust-proof , more stable performance , more durable than ordinary potentiometer !
Using fully shielded inductor high current 127 , to ensure crisp and powerful sound.
Basic performance parameters:
100% Brand New And High Quality
Work : D Class
Quiescent Current : 50mA
Efficiency: 90%
Rated output power : 2 * 50W
Frequency response : 20Hz to 20KHz
Working voltage : DC18V to DC24V
Maximum output current : 2A
PCB size : 81MM * 69MM
Package includes:
1 x TPA3116 Class D Power Amplifier Board
We can also wholesale if you need a large quantity of item please contact us
