New Mini HF ANT SWR Antenna Analyzer Meter For Ham Radio Hobbist

FEATURES

• Hardware:
  • Precise and self-calibrating reflectometer design measures forward and reflected signals and impedance data
  • Display 2x16 with optional backlight
  • Precision DDS signal generator (AD9851) used as signal source

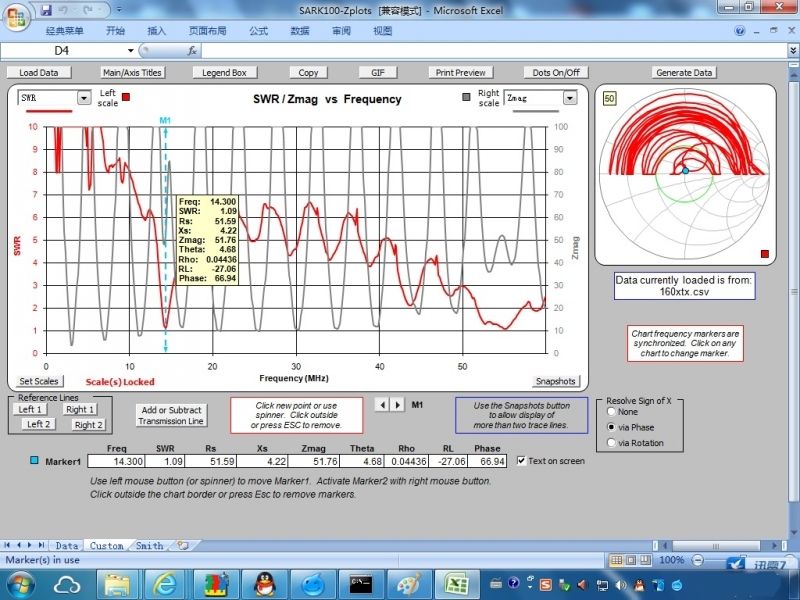

  • USB port connects to PC for field-upgradeable software and uploading of real-time measurement data
  • Buzzer
• Operation:
  • Manual control option displays SWR and complex impedance at selected frequencies
  • Automatic scanning results displayed as frequencies of lowest SWR and complex impedance
  • Battery operated for field use or use external 13.8V wall adaptor
  • Power saving modes
  • Multi-point calibration for better accuracy
• Instrument Capabilities:
  • Measure antenna electrical parameters: SWR, impedance (resistance + reactance), capacitance, inductance
  • Measure feedpoint impedance
  • Measure ground loss
  • Adjust antenna tuners and determine loss
  • Measure inductors and capacitors
  • Measure coax transmission line (SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance)
  • Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance
  • Determine characteristic impedance of transmission line
  • Determine length of ¼ and ½ wave phasing lines
  • Coaxial Cable Loss
  • Determine antenna tuner loss
  • Measure balun loss
  • Measure inductor Q
  • Estimate quartz crystal parameters
  • Measure magnetic loop resonance and SWR

• Frequency Generation & Control:
  • 1 - 60 Mhz
  • Source impedance: 50 Ohms
  • Stability: +/- 100 ppm
  • Spectral Purity: Harmonics down >- TBD dB beyond 60 MHz
  • Step Size: User configurable increments of 100 Hz, 1 kHz, 10 kHz, and 100 kHz
• Usable Measurement Range:
  • SWR: 1.0 to 9.99
  • Impedance: approx. 5 to 2000 ohms
• RF Output:
  • Adjustable: 2.0 Volts pp (typ)
• Power supply:
  • 3.7v li-on battery
  • External: 12 to14 Volts DC, 500mA

Controls:

• • Pushbuttons (5): "Mode", "Band", "Config", "Scan", "Up", "Down"
  • Switch: "Power On"
• Connectors:
  • RF Out: BNC
  • USB: Mini-B receptacle
  • External power: 2.1mm Power Jack (center pin positive)

Package includes:

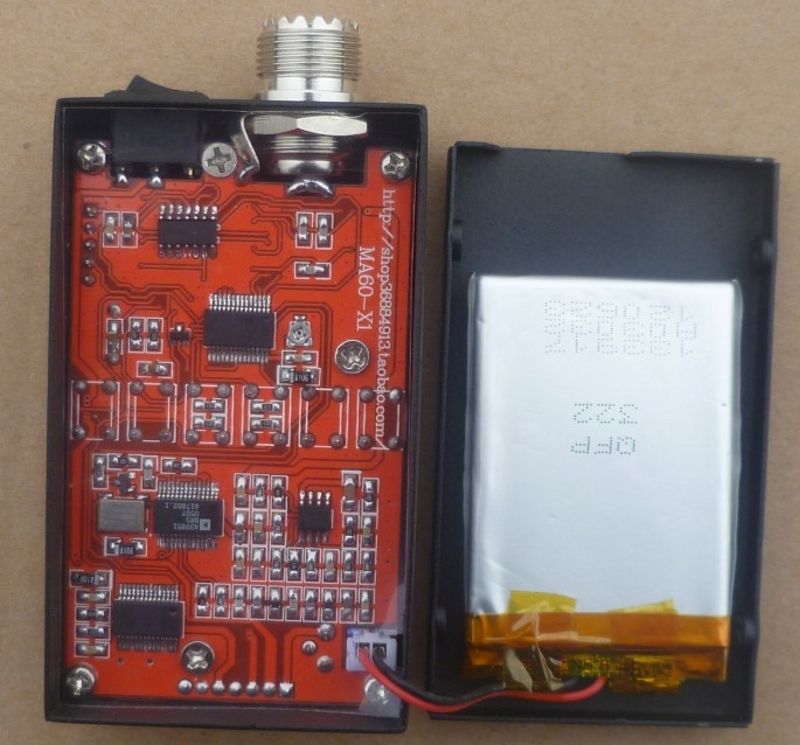

1 x Antenna Analyzer (as the picture)
We can also wholesale if you need a large quantity of item please contact us
