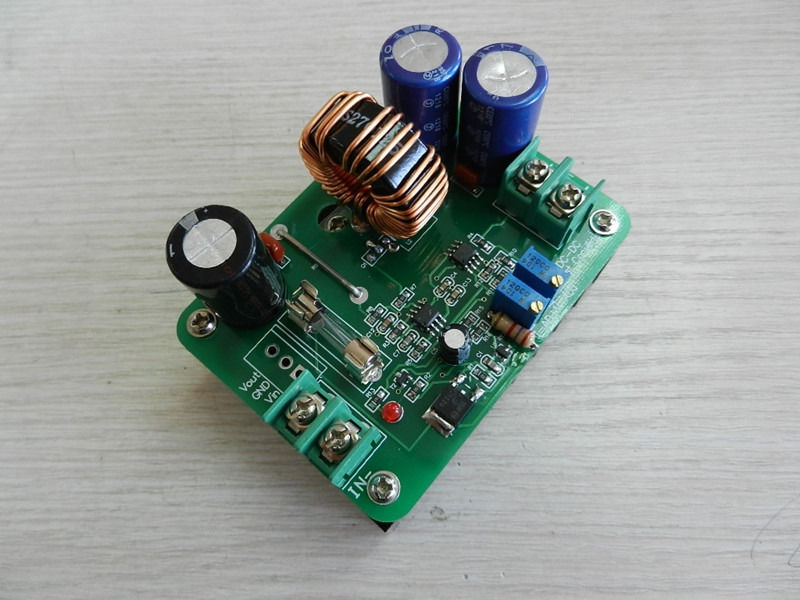

New DC-DC 600W 10-60V to 12-80V Boost Converter Step-up Module Power Supply
100% Brand New And High Quality
Input voltage : 10V --60V
Input Current: Maximum input current 15A
Output voltage : 12V --80V continuously adjustable
Output current: maximum output current 10A ( adjustable )
Output power: the effective power P = input voltage V x 10A
Conversion efficiency: up to 95% ( input voltage, current; output voltage and current impact of conversion efficiency )
Short circuit protection : Fuse
Size :85*63*64mm
Weight :251g
Applications:
1. DIY an output adjustable car power supply, only need to enter the access 12V power supply output voltage can be (14V-80V) free continuous adjustment, but the output voltage can not be lower than the input voltage.
2. universal car laptop power supply. Input connected to 12V power supply, the output voltage can be adjusted to the notebook need work.
3.Boost charger with 12V power supply is higher than 12V battery charging, for example, 24V battery and charging current can be adjusted.
4.For electronic equipment power supply, as long as the voltage regulator to the required voltage and current does not exceed the rated current is normal.
5. System before the power supply when doing a project about 24V of power input of 10V-18V, the system board and a great power, common DC-DC module power is too small, then this module will be your most good choice, do not debug directly on the machine can easily achieve high-efficiency high-power boost
Here are some performance test image:
1.Input voltage of 12V current of 4.17A , the boost output voltage of 20V current 2.4A, module efficiency of 97%
2. input voltage of 54V current 13.5A , output 58V Current 12A use 5Ω1Kw resistor as a load test , efficiency is 95%
3. 965W output test pattern , pls use 5Ω1Kw resistor for a load test.
Package includes:
1 x Boost Converter Step-up Module
