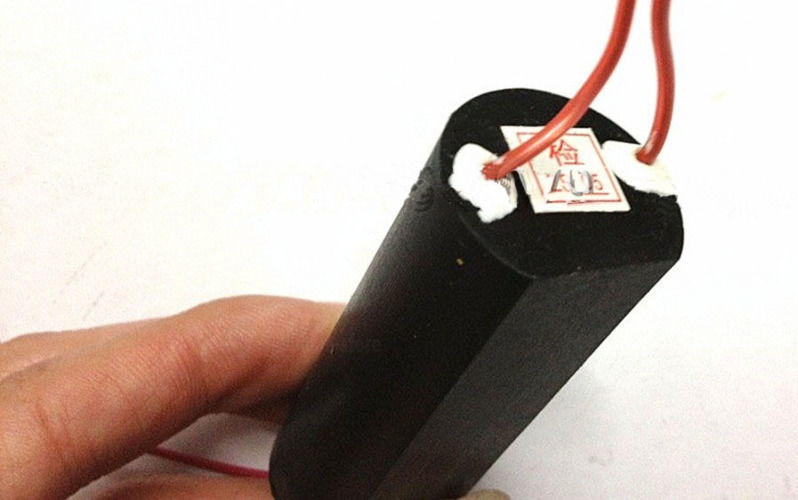

New DC 3v-6v to 400kV Boost Step-up Pulse Power Module High-voltage Generator
100% Brand New And High Quality
Voltage: Input DC 3V-6V
Output DC400kV - 600KV
Cable length: 100mm above the input and output more than 90mm
Structure: high and low voltage integrated
Uses : used in 105 high-voltage generator , high voltage ignition, teaching experiments
Red and green lines are connected to the supply side of the green line red positive negative
Two red side is sparking
Non- continuous work
The high-voltage module uses the principle Tesla coil is made of high-voltage pulse output voltage current , small size , high efficiency, simple external circuit ( just plug in the switch , the battery can be ) discharge intensity violent.
Input voltage : DC 3V-6V
Input Current : 2A-5A
High Type : Pulse Current
Output voltage: 200 000 volts ( Please note that when security )
High voltage bipolar discharge distance : 10mm-20mm
Output voltage lines Length: about 100mm
Input power cable length: about 100mm ( red is positive )
Dimensions : 24 * 60mm
About Power: 3.7V Li-ion battery can be used single or two series , such as the 18650 batteries, cell phone batteries idle ( to remove the protection board , the proposed capacity of 2000mAh or more ) or NiCd / NiMH battery pack , 4V or 6V Lead Acid batteries .
This module is a small production with a high scientific inverter transformer / booster finished module input DC3V-7.2V input voltage can be obtained at the output of about 200,000 volts DC high voltage ( about 1-2 cm arc ) can be used as secondary school science experiments , electronic equipment, negative ion generator, high voltage when science small production source.
Note:
Avoid high-pressure high-voltage module load power use . ( Energized high voltage side before adjusting the appropriate distance, high-voltage arcing distance with the use of the battery voltage and capacity is proportional to the test arc from short to long distance experiments , non- arcing distance beyond the longest energized , energy can not be released due to high pressure , easily damage the module. )
Since power, internal heat is not easy, every power-on time should be controlled within a minute
Determine the battery capacity is the maximum power output can be driven approach is to measure the battery voltage arcing . If so can 6V maximum power output .
Package includes:
1 x Pulse Power Module
