New 600M 2.4G Wireless Image Video AV Transmitter + 2.4G AV Receiver Module Set
Description
100% Brand New And High Quality
This module is 2400-2483.5MHz band with industrial, scientific and medical radio communication equipment and other non-shared frequency radio communications equipment, can be transmitted within a limited range stereo audio with the video. Take a low-power design, integrated VCO, PLL, broadband FM video demodulation, FM sound carrier frequency, so that the module is smaller; take veneer small package, user miniaturized applications.
The application of this module is simply plugged in Mono audio cable, video cable, connect the antenna can receive music, image signal.
Transmitter peculiarity:
2.4 broadband audio and video synchronization FM transmitter
Small size
High sensitivity:17 dbm
Low power consumption: 3.3V-5.5V
Built-in high-frequency PLL stability
low harmonic radiation
direct input analog audio and video signals

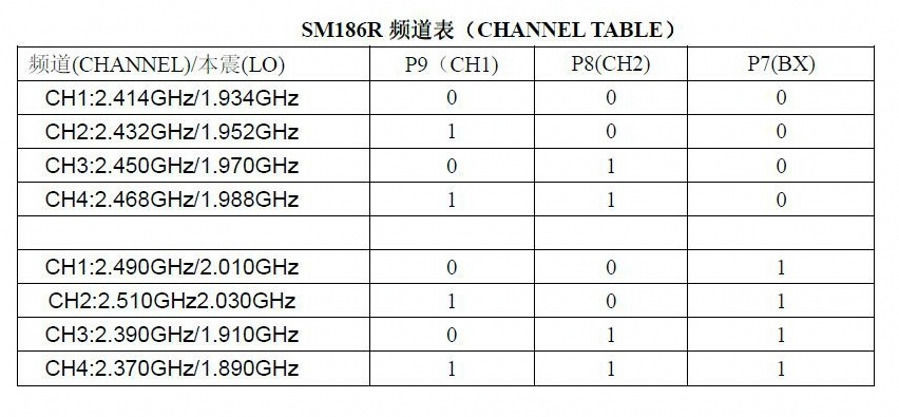

8-channel transmitter
Receiver peculiarity:
Receive Frequency: 2.4MHz; 8 channels
Receiver sensitivity:-90dBm
Frequency Control: Built-in PLL
Dual AV output: output analog audio and video signals directly
Antenna interface: SMA (the pin)
Supply voltage: 3.3V 110mA
Supply Current: 150mA
8-channel receiver
Dimension: 42mm*30mm*6mm
Package includes:
1 x 2.4G Video AV Transmitter
1 x 2.4G AV Receiver Module
We can also wholesale if you need a large quantity of item please contact us
