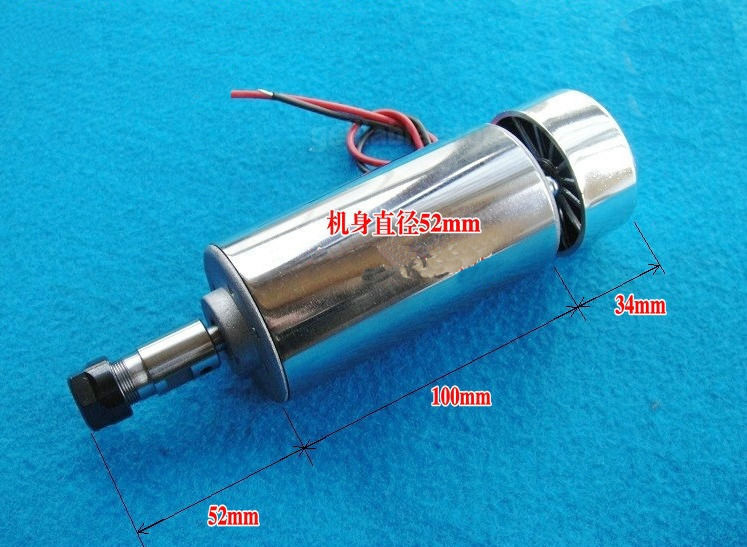

400W High-speed Air Cooled Spindle Motor Engraving Milling DC 12V-48V 12000rpm
100% Brand New And High Quality
Working voltage :12-48VDC
Speed :3000-12000r / min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Torque: 500mN.m
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm
Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)
Part chuck diameter: 16mm
Motor length: 186mm (including gripping parts and motor)
Spindle Net Weight: 0.9KG
Spindle runout of about 0.01-0.03.
Can be used for engraving metal or nonmetal materials.
This comes with air-cooled spindle can work long hours.
Package includes:
1 x 400W High-speed Air Cooled Spindle Motor Engraving Milling
We can also wholesale if you need a large quantity of item please contact us
