3.2" inch TFT LCD Module Display 320x240 + Touch Panel PCB Adapter SD Card Cage
100% Brand New And High Quality
3.2" inch TFT LCD module integrated a Himax HX8347-A TFT LCD controller and ADS7843 compatible touch screen controller as well as a SD card cage. It is suitable for embedded systems which require display high quality colorful image or video with interactive control and storage purpose. The Module interfaces to microcontrollers via a 2*20 Pin 2.54mm dual row pin header interface , can easily be connected to any microcontroller or FPGA and DSPs.
SSD1289 touch panel controller
3.3v voltage regulator
pcb adapter for lcd
one sd card socket
2*20 Pin 2.54mm double row pin header interface for connecting MCU.
can be driverd by 8051 / AVR / PICand other low power controllers.

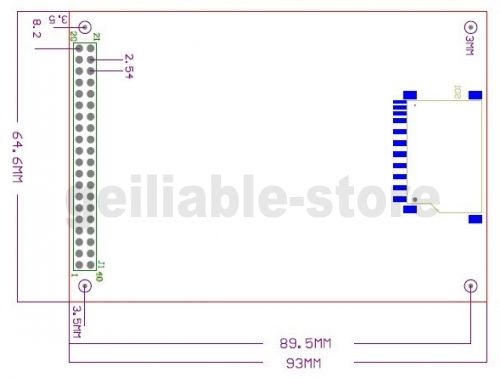

Module Size : 94(L) * 64 (W)* 14mm(h) including connector
Display content: 240RGB x 320 Dots
Resolution: 240 x 320 Dots
Backlight type: white led
1
GND
21
LCD_DB0
2
VCC
22
LCD_DB1
3
N.C.
23
LCD_DB2
4
LCD_RS
24
LCD_DB3
5
LCD_WR
25
LCD_DB4
6
LCD_RD
26
LCD_DB5
7
LCD_DB8
27
LCD_DB6
8
LCD_DB9
28
LCD_DB7
9
LCD_DB10
29
TouchP_CLK
10
LCD_DB11
30
TouchP _CS
11
LCD_DB12
31
TouchP _DIN
12
LCD_DB13
32
TouchP _BUSY
13
LCD_DB14
33
TouchP _OUT
14
LCD_DB15
34
TouchP _Penirq
15
LCD_CS
35
SD_OUT
16
N.C.
36
SD_SCK
17
LCD_RESET
37
SD_DIN
18
N.C.
38
SD_CS
19
LED_BL
39
N.C.
20
N.C.
40
N.C.
Package includes:
1 x 3.2" inch TFT LCD Module Display (as the picture)
We can also wholesale if you need a large quantity of item please contact us
