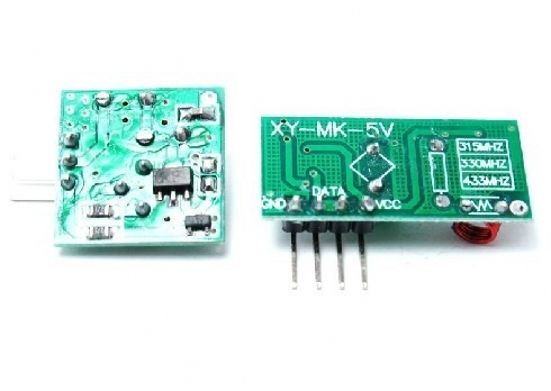

2 set 433Mhz RF Wireless Transmitter + Receiver Link Kit Module for Arduino New
100% Brand New And High Quality
Working voltage: 3V～12V
Working current: max≤40mA (12V), min≤9mA(3V)
Resonance mode: sound wave resonance (SAW)
Modulation mode: ASK /OOK
Working frequency: 315MHz-433.92MHz, customized frequency is available.
Transmission power: 25mW (315MHz at 12V)
Frequency error: +150kHz (max)
Velocity: ≤10Kbps
Self-owned codes: negative
RX Technical Specifications:
Working voltage: 5.0VDC +0.5V
Working current:≤5.5mA (5.0VDC)
Working principle: single chip superregeneration receiving
Working method: OOK/ASK
Working frequency: 315MHz-433.92MHz, customized frequency is available.
Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm)
Sensitivity: excel –100dBm (50Ω)
Transmitting velocity: <9.6Kbps (at 315MHz and -95dBm)
Package includes:
2 sets 433Mhz RF Wireless Transmitter + Receiver
We can also wholesale if you need a large quantity of item please contact us
