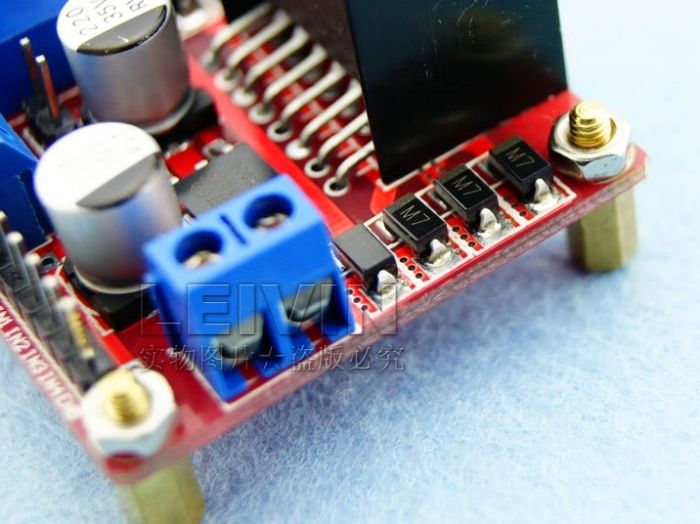

2 pcs L298N Dual H Bridge DC Stepper Motor Drive Board Module For Arduino New
100% Brand New And High Quality
Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A(MAX single bridge)
Storage temperature: -20 to +135
Max power: 25W
Weight: 30g
small size: 43*43*27mm
Notice
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.

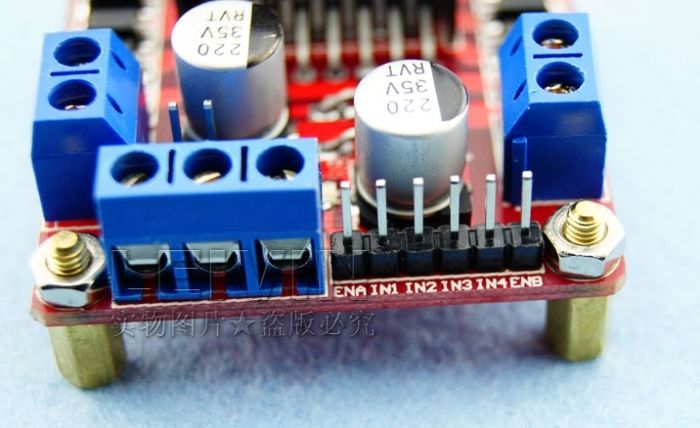

When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN$ control OUT3 OUT4
Package includes:
2x L298N Driver(without the bottom screws)
We can also wholesale if you need a large quantity of item please contact us
