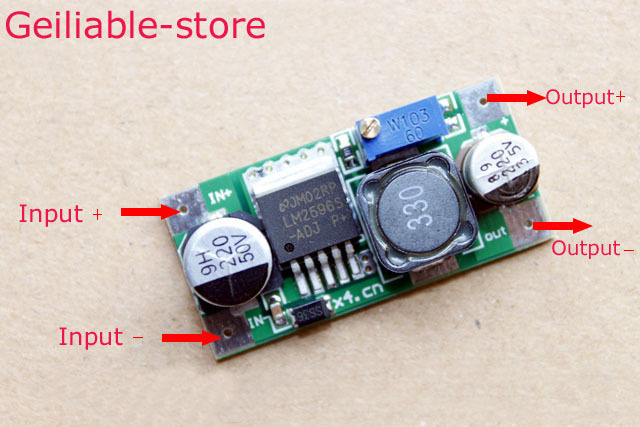

10 x LM2596 DC Step Down Adjustable Power Supply Module

Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Dynamic response speed: 5% 200uS

Specification:

Input voltage:4.5-40V

Output voltage:1.5-35V(Adjustable)

Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)

Dimension:43*20*14mm(L*W*H)

Package content:

10 pcs/lot LM2596 adjustable power module

Note:

Before you buy,pls note that all the PCB board isgreen or redcolor

We can also wholesale if you need a large quantity of item please contact us
