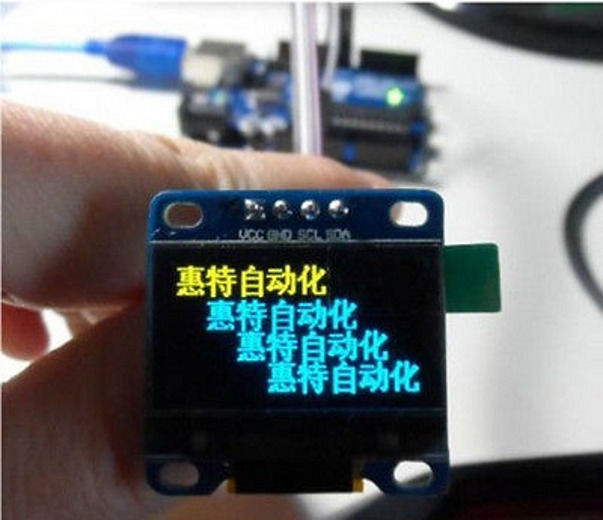

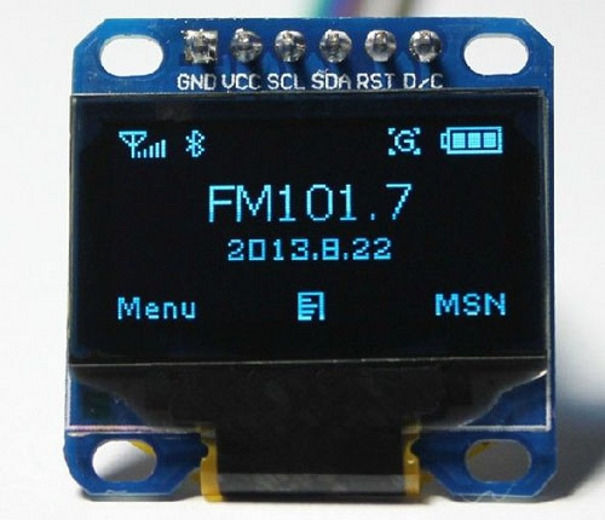

0.96" IIC I2C Serial 128x64 12864 Blue OLED LCD LED Display Module for Arduino
What is OLED?OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.The use of OLED technology offers the following advantages for flat-panel displays?1. A simplified manufacturing process compared to TFT-LCD(See comparison of Picture 1 and Picture 2 below)2. Self-emitting light, in contrast to the required backlight for TFT-LCD3. High luminosity4. Lightweight and thin (less than 2 mm)5. Capable of wide viewing angles?~180??6. Low operating voltage and power consumption7. Quick response (~ ? second level)8. Wide range of operating temperatures (-40? to 85?)A Comparison of OLED and TFT-LCD Display Technologies
Picture 1: OLED Display
Picture 2: TFT-LCD DisplayHow Does OLED Emit Light?OLED?s basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.
Product Introduction
Needn't backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle: >160 °
Supports many control chip: Fully compatible with Arduino, 51 Series,
MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: ：-30℃~70℃

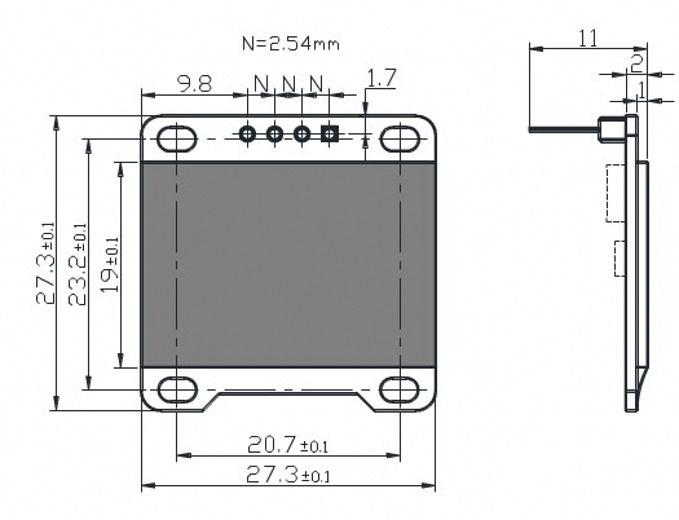

Module Size: 27.0MM * 27.0MM * 4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SH1106
Blue color
Note:
If you decide to buy OLED display, you must confirm that you can make
it work by yourself, we'll haven't any technology support except all the
datasheet. Thanks for your understanding and support.
Package includes:
1 x Blue OLED LCD LED Display Module for Arduino
We can also wholesale if you need a large quantity of item please contact us
